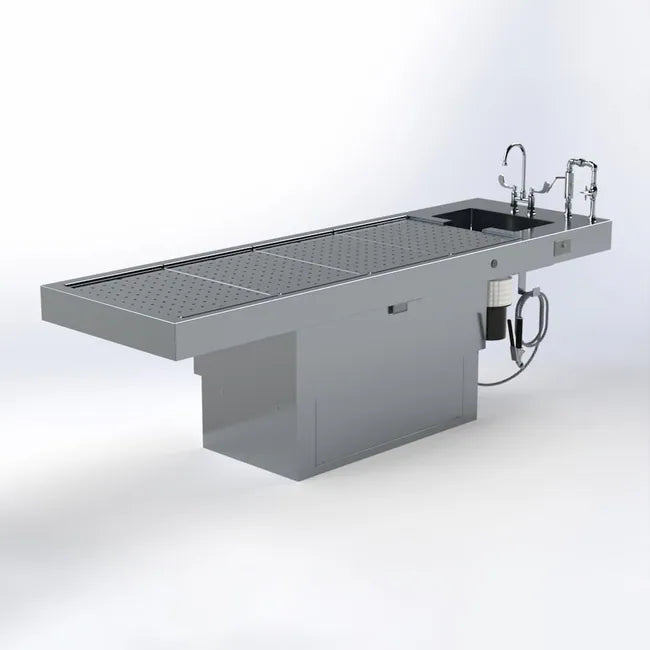

Mopec Pedestal Autopsy Table, Vented

Construction

• Heliarc-welded seams and joints, ground and polished to match adjoining surfaces
• (4) Fully perforated grid plates
• Mixing faucet with gooseneck spout and wrist blade handles
• Heavy duty waste disposal (1/2 HP)
• Deluxe hydro-aspirator with reverse flow, cold water control valve with 10ft of hose
• Spray hose assembly with cold water control valve, nozzle with 10ft of hose

Materials

• 304 stainless steel construction with a polished No. 4 finish

Utilities / Power

• (1) 115v / 60hz / 1ph/ 15a circuit for station
• (1) 115v / 60hz / 1ph / 15a circuit for disposer
• Exhaust recommendation: 450-500 CFM

Dimensions

• 1036-41-TD:104 x 32 x 35 in.
• 1036-41-ATD:104 x 32 x 32 - 44 in.
• Sink depth: 8 in.

Capacity

• 750 lbs

Performance

• GFCI protected receptacles with waterproof covers
• Back-flow protection for all plumbing fixtures to prevent back-flow of contaminated water
• Rapid and positive drainage
• (2) Access panels on pedestal

Options and Accessories

• Elevation Optional: 1036-41-ATD
• CO017: Scale stand, table mounted
• CO009: Perimeter rinse
• CO012: In/Cm Scale/Ruler
